Spiral springs

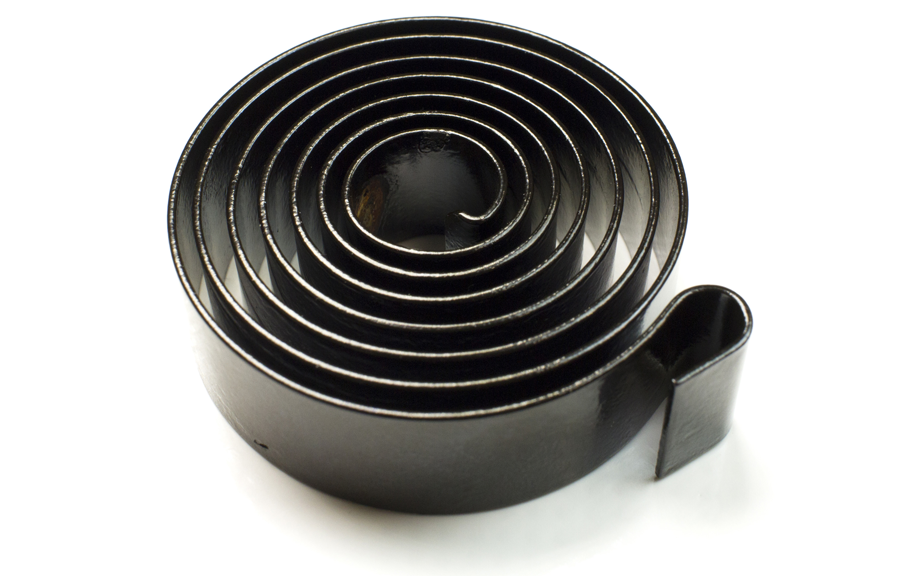

Spiral springsHoop spring enabling great elasticity with limited outline dimensions
Capacitor dimension (thickness)→ 0.1 to 3 mm
Manufacture capacity→ Unit / small / medium / mass
Worked sections→ 1 to 70 mm
Supplementary operations→ Heat treatment→ Coating→ Machining (Drilling / Tapping)→ Riveting /soldering
Example→ With or without spacer→ Blocked or not → With torque

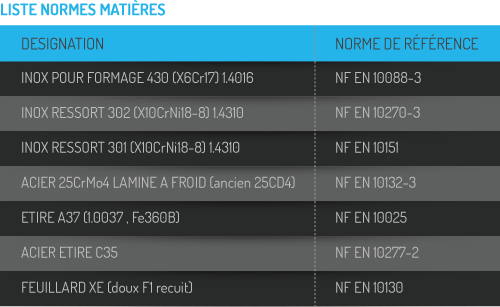

Worked materials
→ Steel→ Copper / Cuprofor / Beryllum copper→ Stainless steel→ Bronze / Nicklafor
Specific finishes on request→ Tribofinishing / Shot-blasting / Polishing→ Epoxy painting / Cataphoresis→ Zinc plating / Nickel plating / Phosphate treatment
Manufacturing methods→ Tempering furnace / Deburring (vibrating) bowl

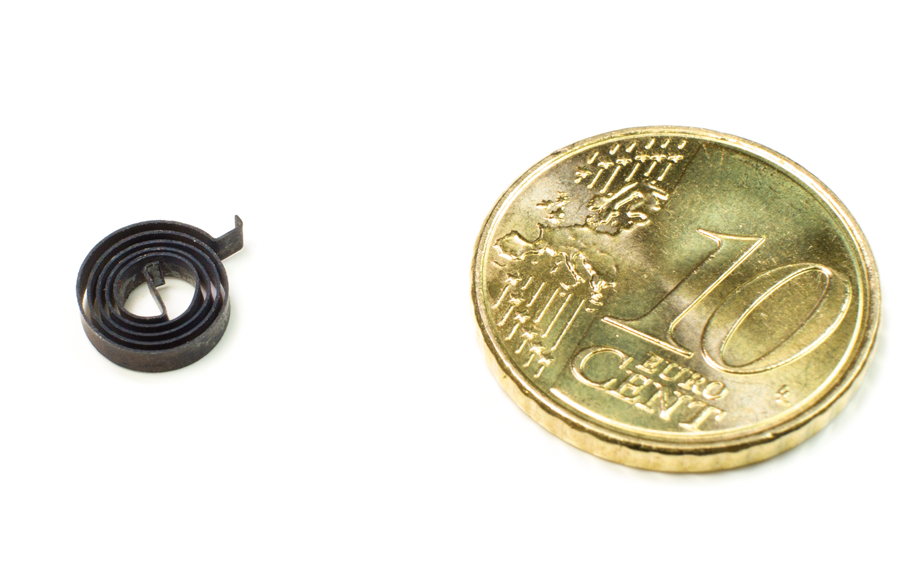

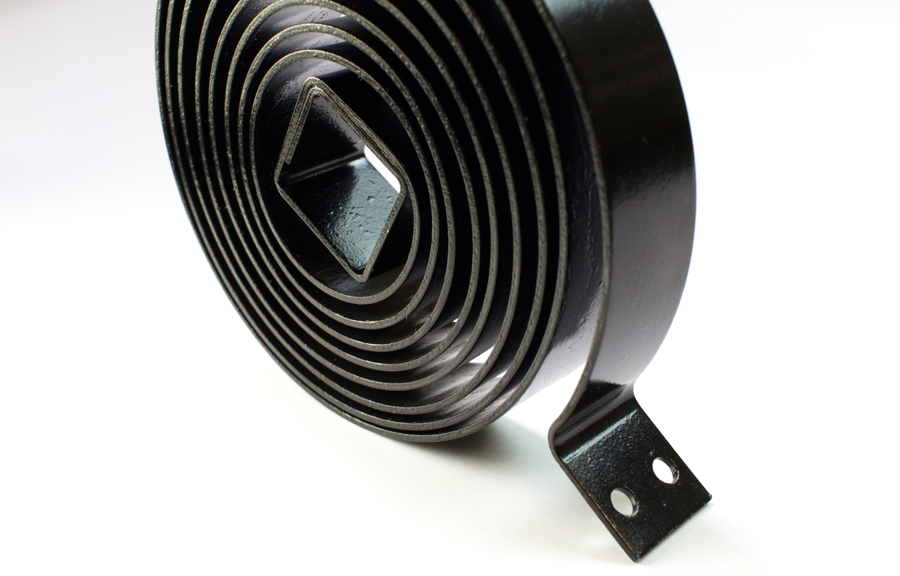

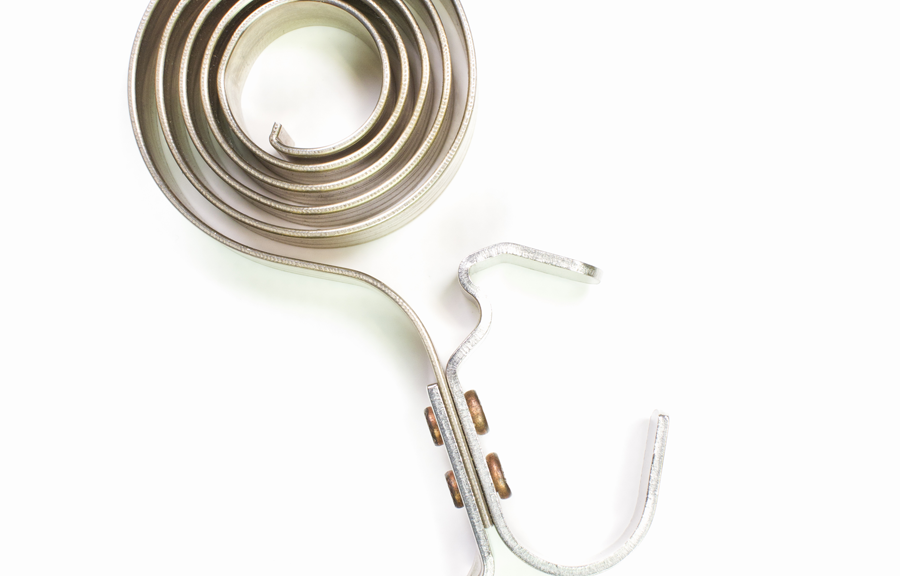

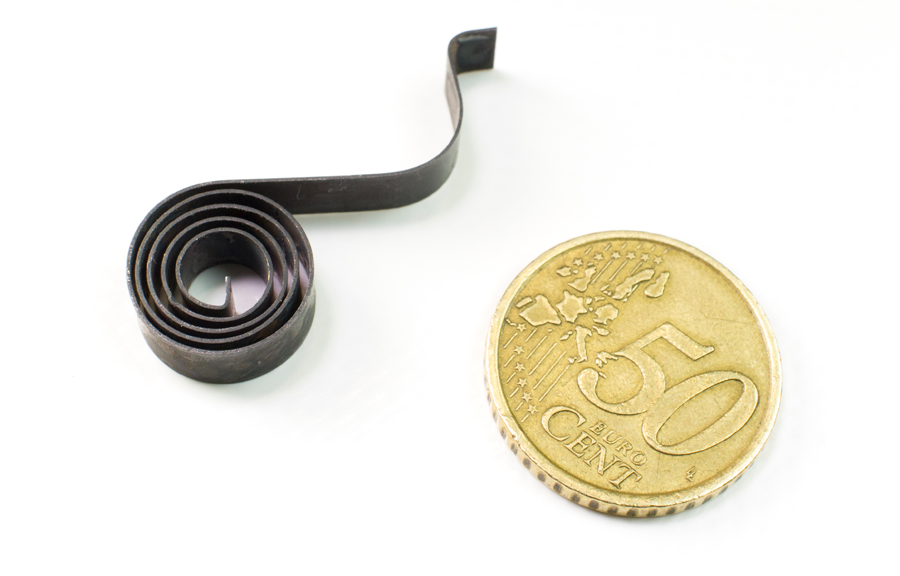

Examples of designs

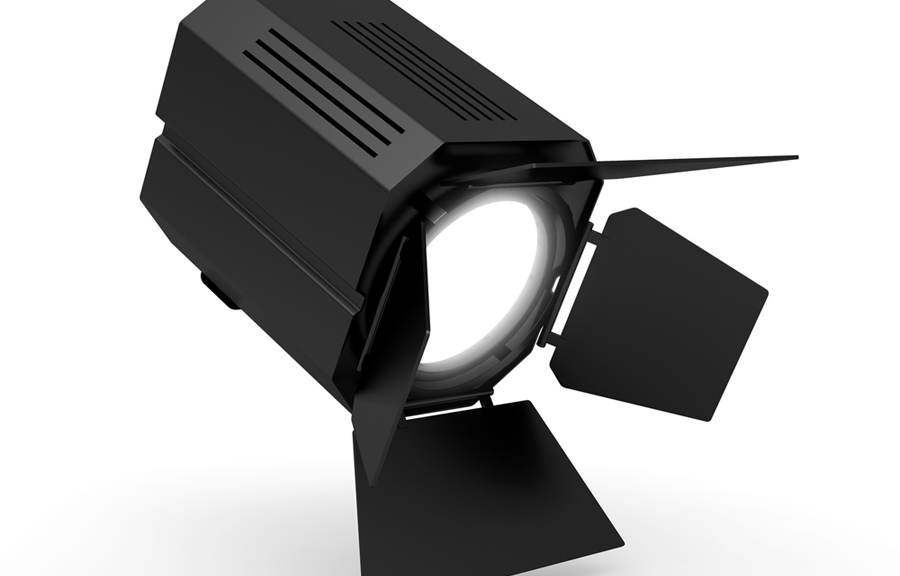

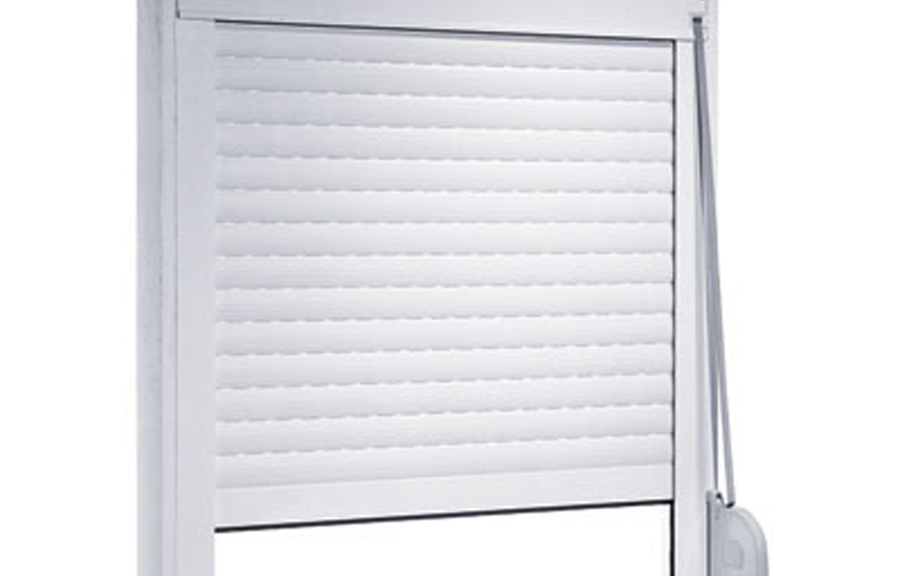

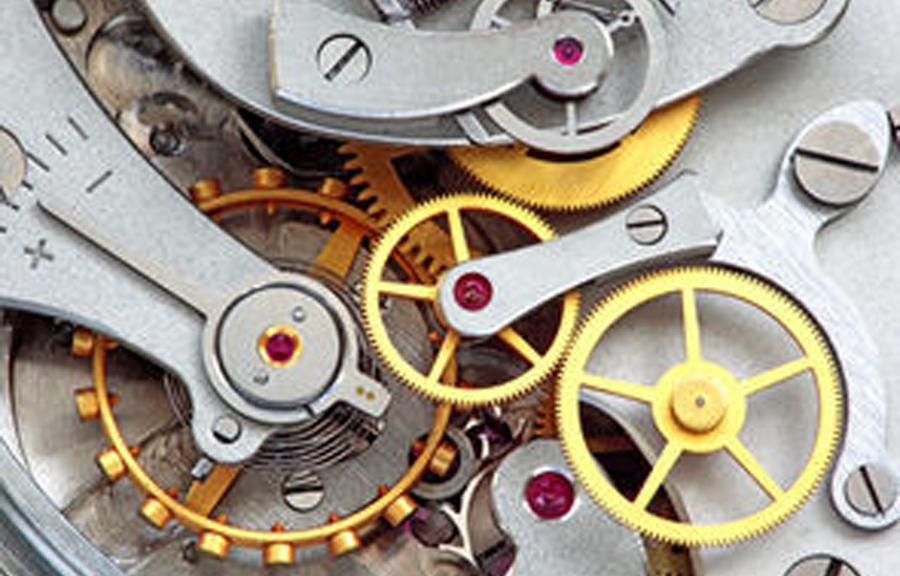

Examples of applications
